Yardian Max
Multifunctional Smart Controller
Local Operation
Flexible Scheduling
Versatile Station Control
Flexible Master Control
Local Operation
The Yardian Max runs independently without needing an internet connection, ensuring reliable, cloud-independent performance. This capability keeps all essential functions active and responsive, even in remote or offline environments.
Cloud service is free for the first year. After that, an optional cloud fee of $99 per year applies if you wish to continue using the remote control service.
Wi-Fi Direct Connect
No need for internet connection, you can connect to the controller using your phone’s Wi-Fi, enabling direct operation and setup.
Control Through The Cloud
You can *remotely control using your smartphone browser, connect via Wi-Fi or Ethernet, and optionally add a LTE router for internet access.
Flexible Scheduling
The Yardian Max offers a range of scheduling options to suit your needs: Quick Control and Quick Program for immediate station activation, Manual Program for scheduled operations on specific dates and times, and Conditional Programs that create automated routines based on sensor data. This flexibility lets you customize scheduling for any application.
Versatile Station Control
Maximize functionality with One-at-a-Time Group and simultaneous station operation options. Configure the controller to run individual stations sequentially for irrigation or enable multiple stations to operate at once for multi-station tasks, enhancing versatility across various applications.
Flexible Master Control
Provides advanced control with the Master by Station feature, activating the master station only for selected stations. Ideal for combining irrigation with general control setups that don’t require a master valve or pump, ensuring flexible, targeted operation.
Yardian Max Works With Yardian Data Hub For Many Applications
Yardian Max multifunctional smart controller can work with relays for various smart controls and integrate assorted sensors through the Yardian Data Hub for environmental monitoring – perfect for Protected Agriculture.
Please check out the applications in solar precision irrigation and general IoT automated control.
Yardian Max Technical Specs
Interfaces
- 8-zone/12-zone with surge and overcurrent/short protection
- On-device buttons for “zone status detection” and “instant watering control”
- RJ45 port and USB port
- Dedicated master valve/pump
- Dedicated 24VAC output port Two sensor ports
- Wire range: 14AWG – 22AWG
Dimensions and Weight
Controller:
- 6” L x 6” W x 1.38” H (15cm x 15cm x 3.5cm)
- 1lbs (0.45Kg)

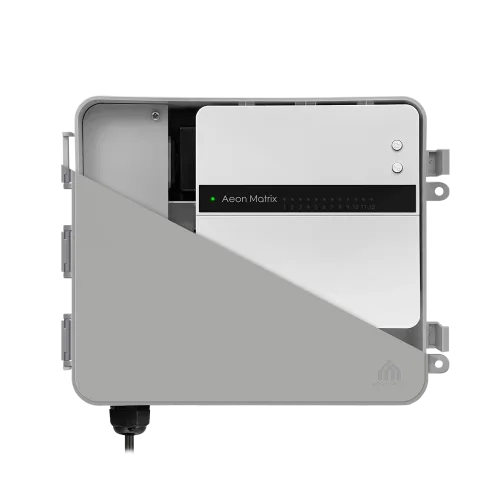

Outdoor enclosure:
- 11” L x 8.5” W x 3.5” H (28cm x 21.5cm x 8.9cm)
- 1.8 Ibs (0.85 Kg)
Controller Power
- Yardian must be connected to the power adapter included
- Input: 36VDC, 1.66A
- Output: 24VAC, Max.1A
External Power Adapter
- Input: 100 – 240VAC, 50 – 60Hz, Level VI efficiency
- Output: 36VDC, 1.66A
Rain Sensor Support
- Programmable to Normally Closed (NC) or Normally Open (NO)
Flow Sensor Support
- Pulse output sensor
Operating Temperature
- -22°F to 140°F (-30°C to 60°C)
Warranty
- 4-year limited warranty
Design
- Indoor use (with the Weatherproof Outdoor Enclosure included)
Internet Connection
- Built-in Wi-Fi 2.4G, 802.11 b/g/n
Future Proof
- Future integrations through Over-The-Air software updates
Certification
- UL, CE, FCC and RCM certified
